An Analog Phone For Our Front Gate: Done Deal!

mjgraves | October 17, 2011

DoorBellFone250 An Analog Phone For Our Front Gate: Done Deal!While I ordered the DoorBell Fone back in August the fact of our extreme Houston summer kept me from completing the installation. The buried wire run out to our gate was broken and there was just no way I was going to bury a new wire in 100+ degree heat. This past weekend I was able to find the time and temperature to complete the installation.

The largest task was to completely replace the wiring from the central closet in our house out to the gate. I replaced the old-skool solid copper pair with a length of Cat-5 cable. Using Cat-5 is a bit of future-proofing. It means that I can change to a POE-powered network device at the gate without replacing the cable again.

For the moment I’m using only one pair from the Cat-5 wiring, connecting the DoorBell Fone remote unit to the controller in the wiring closet. The total cable length is about 80 feet.

The RJ-11 jack on the controller is connected to the RJ-11 jack on our Gigaset DECT base. The result is that when someone presses the button at the gate the Gigasets ring as if being driven by a POTS line. It’s simple but effective.

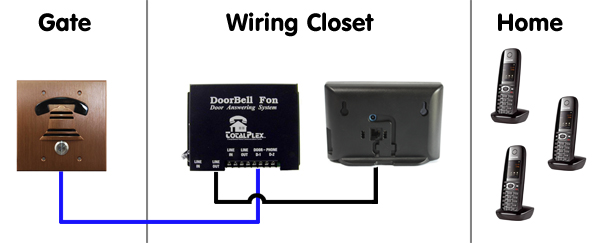

DoorPhoneFlowchart An Analog Phone For Our Front Gate: Done Deal!

The one analog adjustment on the DoorBell Fone is a small variable resistor on the back of the door station. This setting determines the mic level on the intercom. It’s important not to set this too high or the DoorBell Fone oscillates.

I aligned the device by turning the microphone level up until the device complained aloud, then backing it down until peace reigned once again. It’s a pretty simple process in reality.

So, as of this evening our new gate phone is functional. Functional, but not perfect. I would appreciate a greater degree of audio level than the DoorBell Fone & Gigaset combination allows.  The level at the door station could be higher to overcome street noise.

Also, the audio quality is merely adequate. But, what the heck, it’s a gate intercom….not a tool for lengthy conference calls. It’s nice to have a working solution.

Algo Solutions 8032 SIP Door Phone An Analog Phone For Our Front Gate: Done Deal!In truth, I was very interested in the SIP door phone offered by ALGO Solutions . I first saw them at ITExpo last month. Their model 8028 SIP Door Phone seems like a bit more evolved solution. It priced out around $400, about 30% more than the analog DoorBell Fone. I may yet be convinced to try the ALGO Solutions device.

So, how did we celebrate the fact that the gate phone was working? We ordered a pizza, then waited for the delivery person to ring the intercom when they arrived. After years of needing to keep a constant watch for deliveries it was treat to just wait for the phone to ring.

Sometimes the simple conveniences can be so enjoyable.
